Which two types of gate valves are there?

There are two primary categories of gate valves: parallel and wedge-shaped. The knife gate valve, which has a sharp edge on the bottom of the gate, is a common type of parallel gate valve that uses a flat gate between two parallel seats.

Where is the gate valve?

Gate valves are typically installed in pipeline sections where they will no longer be permanently open or closed because they typically take some time to move between these two positions.

A non-return valve, is the gate valve?

An automated or manual closure device that only permits one direction of flow is used in pumps to stop the flow of liquid from leaving the pipes once the pump has been turned off.

Gate valve manufacturer | Knife Gate Valve Exporters in India, Ball Valve Exporter in India

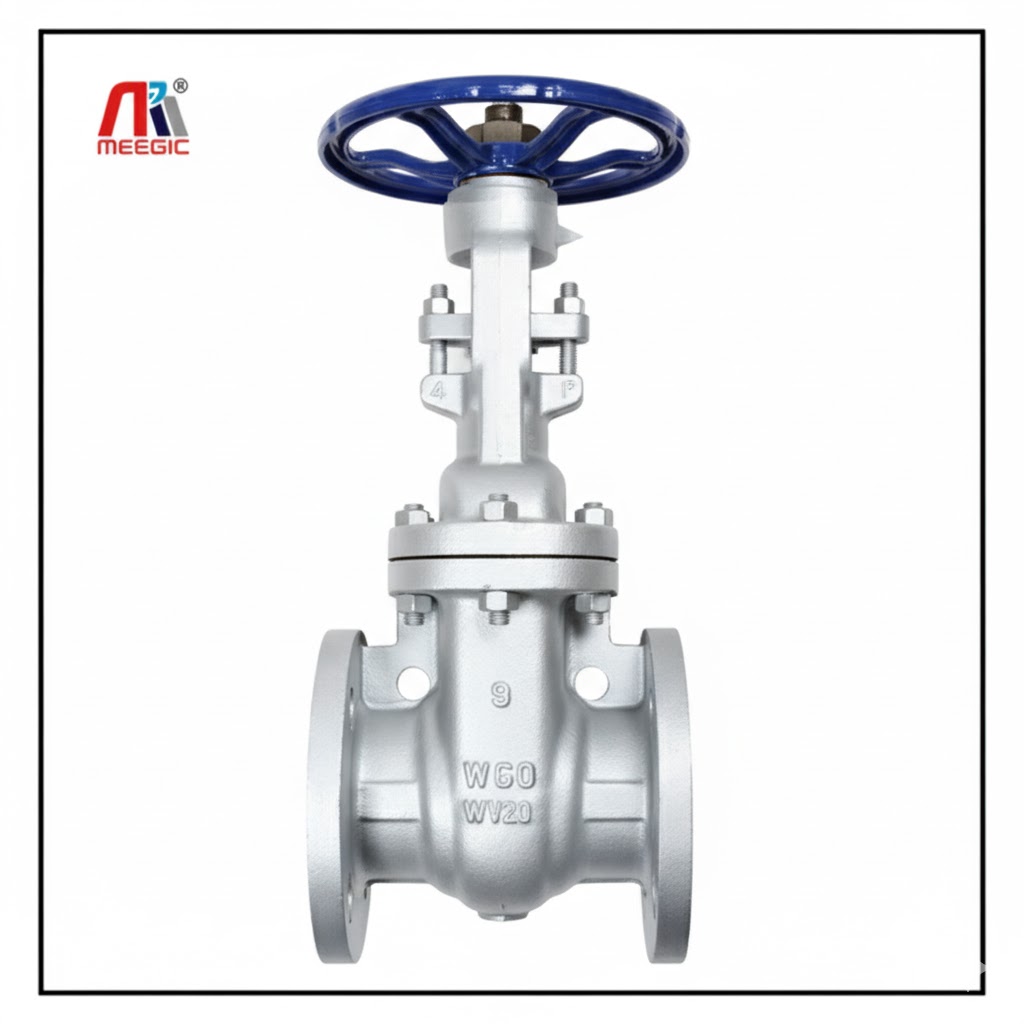

Offered array of gate valve manufacturers consists of a valve body, seat and disc, a spindle, gland, and a wheel for operating the valve in a proper manner. It is considered to be the most popular style of valve in the world of flow control. It is a type of valve having a gate that moves perpendicular to the flow of the service.

We have established ourselves as the leading Gate Valve Exporter in India offering unmatched quality, durability and in the market leading prices. The gate valves that we design and manufacture are used in various industrial applications that meet international quality standards. It can also be customized to the specific needs of our valuable clients.

Gate Valves are precision engineered at our manufacturing unit using the best quality raw materials such as brass, copper, cast iron, bronze, ductile iron, stainless steel, metal alloys, plastic, and ceramic etc. and also produced under the strict observation of our experienced engineers by using the latest technology.

Gate Valve Manufacturer

Axegic Group Inc. is a manufacturer, supplier, and exporter of various sizes and types of gate valves with advanced & professional design aspects. We are a supreme range of gate valve manufacturers & exporters in India. Contact us for custom solutions of gate valves, stainless steel gate valves & industrial valves at very affordable costs.

Gate valve manufacturers in Ahmedabad, India manufacture a wide range of valves which include gate valves, ball valves, butterfly valves, globe valves etc. A gate valve controls the media’s flow by lifting the gate in open position and lowering the gate in closed position. It is generally used to stop fluid flow completely and quickly, provide full flow in a pipeline. Thus it is used either in the fully closed or fully open positions.

We Offer the Following Materials For Our Gate Valves:-

Sizes of Gate Valve:- DN6 to DN50 ( NPS ¼ to NPS 2)
Pressure Rating:- Class 150 & PN10 / PN 16
Material Construction:- Cast Carbon Steel – WCB, WCC, etc.. Low Carbon Steel – LCB, LCC, etc
Design & Manufacturing Standard:- API 600, API 603
Face to Face Std.:- ASME B16.10
Testing Standard:- API 598
Type of Bore:- Standard (Full Bore)
End Connection Type:- Flanged Ends, Screwed Ends, Socket Weld Ends, Butt Weld Ends, Victaulic Ends, etc.
Valve Design:- Rising Stem, Non-Rising Stem Flexible Wedge, Solid Wedge
Operated Type:- Hand Wheel, Gear Box, Electric Actuator, Bare Shaft, etc.

Technical Specifications of Our Gate Valves:-

Design standard

API 600/ASME B17.34/ BS 1414

Testing Standard

API 598/BS EN 12267-1

Face to Face

ASME B 15.10

Flanged End

ASME B 15.5

Butt Weld End

ASME B 15.25

Pressure – Temperature Chart

ASME B 15.34
